Product Details
Mechanical characteristics

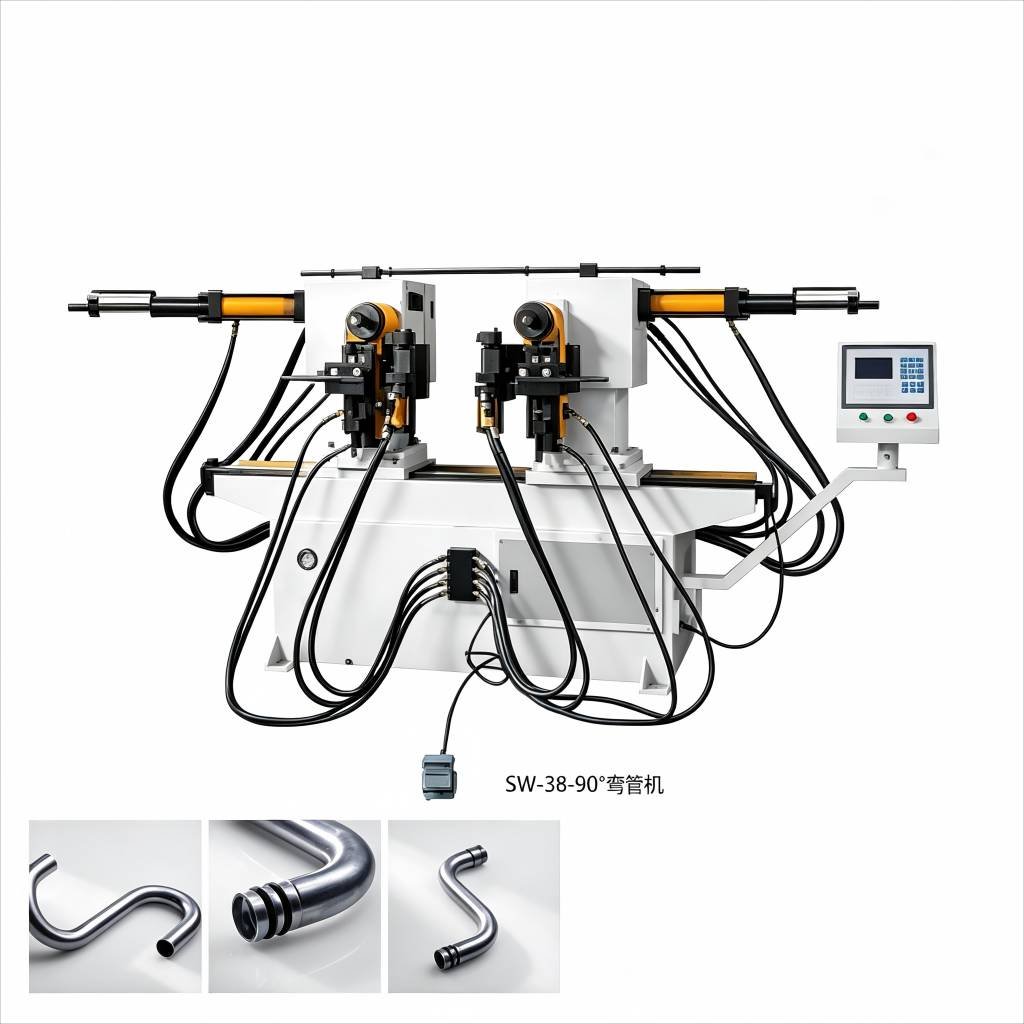

■ According to the base structure of the different types of standard and rotary type a、Standard type: head can not be turned, double headed from the 0-90° can be arbitrary adjustment. b、Rotary type: head can be turned, double-head adjustable bend angle from the degree 0-185°, but must consider the problem of reclaiming.
■ Adopting PLC control, easy operation, easy to maintain.
■ It can be divided into the whole cycle, half cycle for the choice of operation.
■ According to the size of different materials, you can choose one or more than one operation.
■ Standard accessories: a group of mold a group of ruler.
| Technical Parameters | ||
| Model | SW-38 | SW-50 |
| Hydraulic motor power | 4kw | 5.5kw |
| Max. oil pressure | 140kg/cm² | 140kg/cm² |
| Max. applicable pipe (carbon steel) | Φ38×1.8t | Φ50×2t |
| Applicable bending radius | 38–200mm | 45–300mm |
| Double bending center range | 170–1450mm | 190–1650mm |
| Max. bending angle | 185° | 185° |
| Max. processing capacity | Φ25×2 tube | Φ28×2 tube |

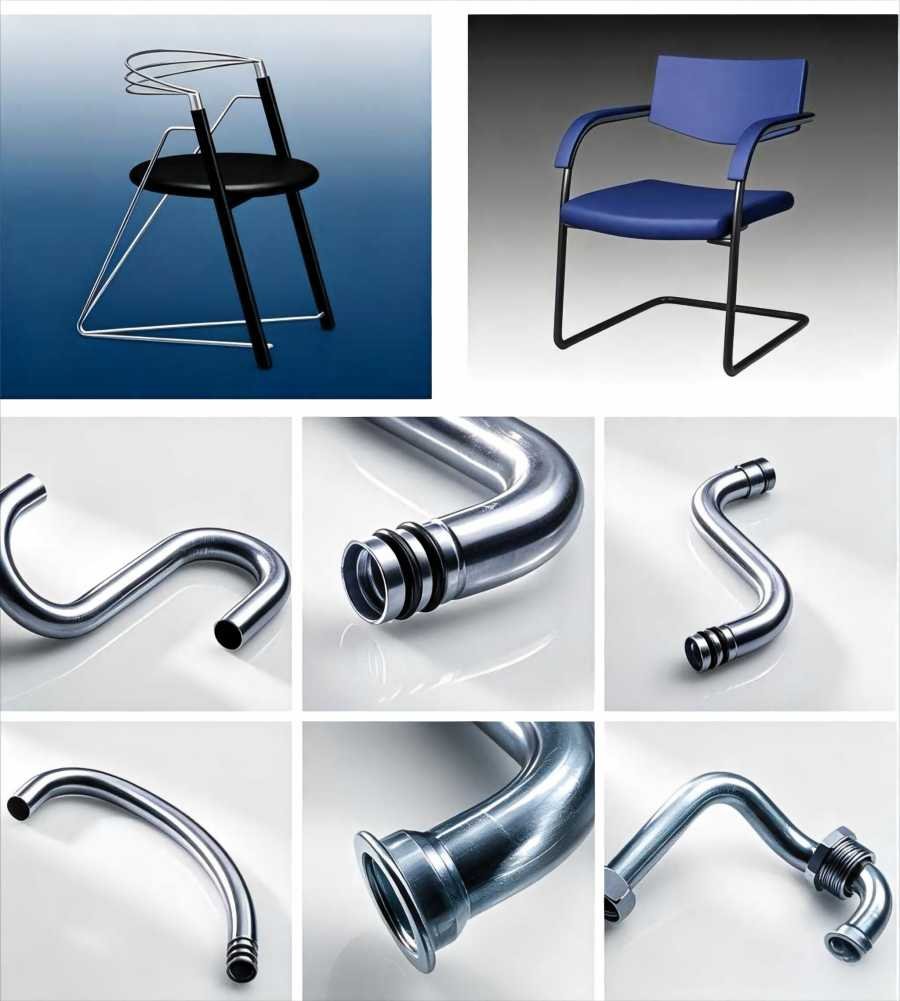

Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
