Product Details
Mechanical characteristics
■ The mechanical main circuit uses imported PLC control. The operation is simple, sensitive with convenient maintenance.
■ Automatic feeding, no end material adopts the imported servo motor and precise screw, cutting accuracy is high, up to ±0.03mm.
■ The counter can be set to the number of processing or automatic shutdown or cumulative day of work.
■ Before and after the pressure stepless adjustment,ensure the workpiece without crush deformation.
■ When Processing size changing, no need to manually hardware positioning,only in the text display to change the relevant size data can work.
■ For aluminum, copper, organic materials, plastic materials, such as carbon fiber has obvious effect, without burr cutting, centralized recovery after cutting of foam debris, can recycle cooling liquid, which has the advantages of high efficiency, saving time and material.
Machine parameters
| Item | LQ-360ZC |
|---|---|
| Model | LQ-360ZC |
| Saw cutting ability | Round solid bar: Φ80mmSquare tube: 110×110mmRectangular tube:110×90mmPipe: Φ110mm |
| Feeding length | Continuous feeding |
| Feed speed | Continuous adjustment |
| Host motor | 4 or 5.5kw, optional |
| Saw blade | Φ355mm tungsten carbide bladeΦ350mm high speed steel blade |
| Spindle speed | 2850RPM or according to order |
| Cooling mode | Water cooling or oil mist cooling |
| Compressed air | 0.6Mpa, 2500NL/min |
| Machine size L × W × H | 1900 × 1300 × 1650mm |
| Total weight | 1200kg |

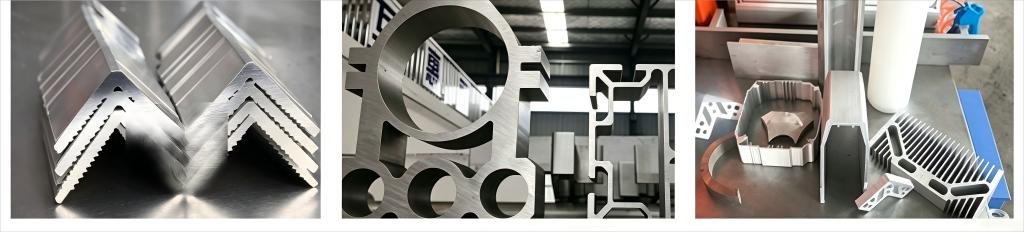

Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
