Product Details
Mechanical characteristics
■ 455Q for the latest design and improvement of the traditional structure, using a sliding rail mechanism and stable movement of the spindle mechanism to strengthen.
■ Spindle feed and back knife is very stable,working table is not easy to shake. The blade cutting route is not easy to micro change.
■ Smooth surface,high precision,hidden type saw blade,upper and lower parts is safe and reliable; pedal switch, full automatic feeding and cutting.
■ Automatic oil injection lubrication,cooling,ection without burr,saw more durable.
■ Single or multiple cutting is suitable for a small number of processing,more suitable for mass processing with high efficiency and low cost.
Machine parameters

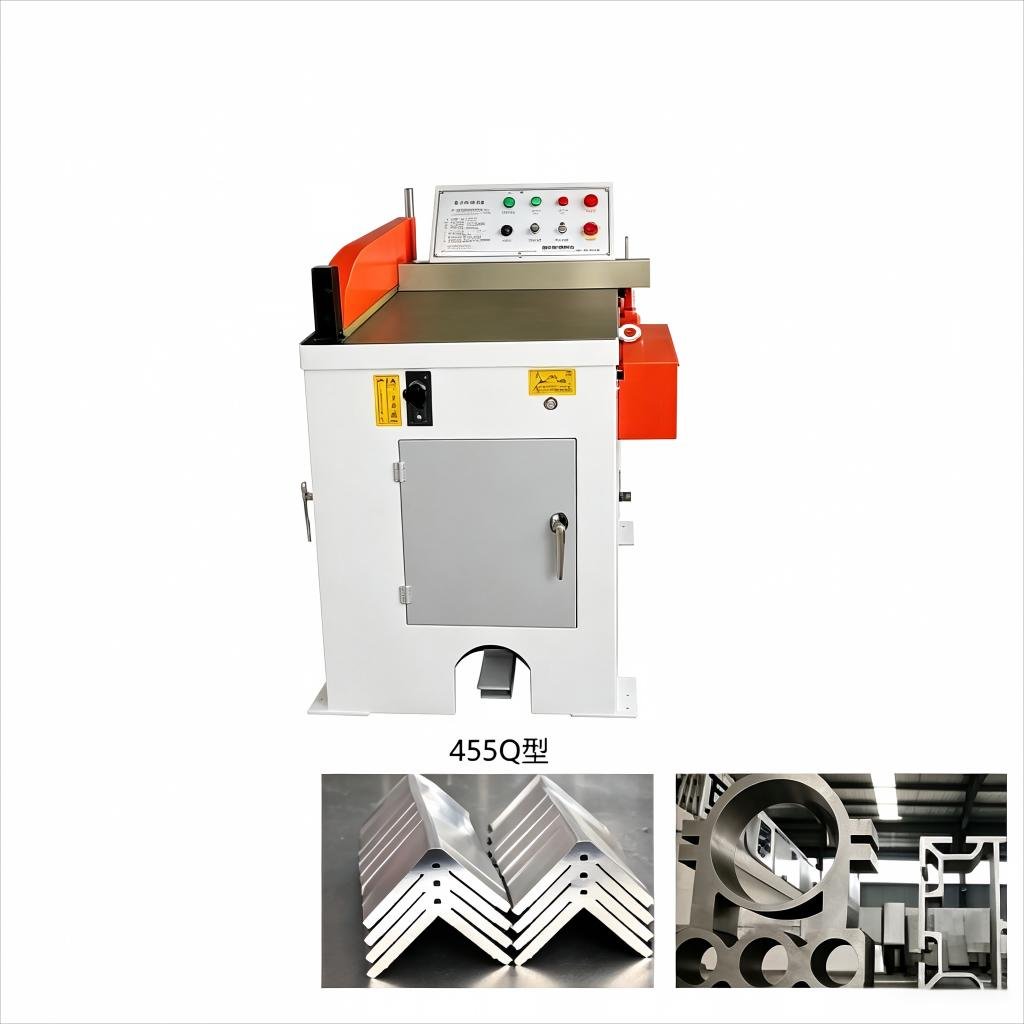

| Model | 455Q |
| Aluminum cutting angle | 90° & 45° |
| Maximum cutting width | 300mm |
| Maximum cutting thickness | 125mm |
| Spindle speed | 3500r/min |
| Motor power | 4kw |

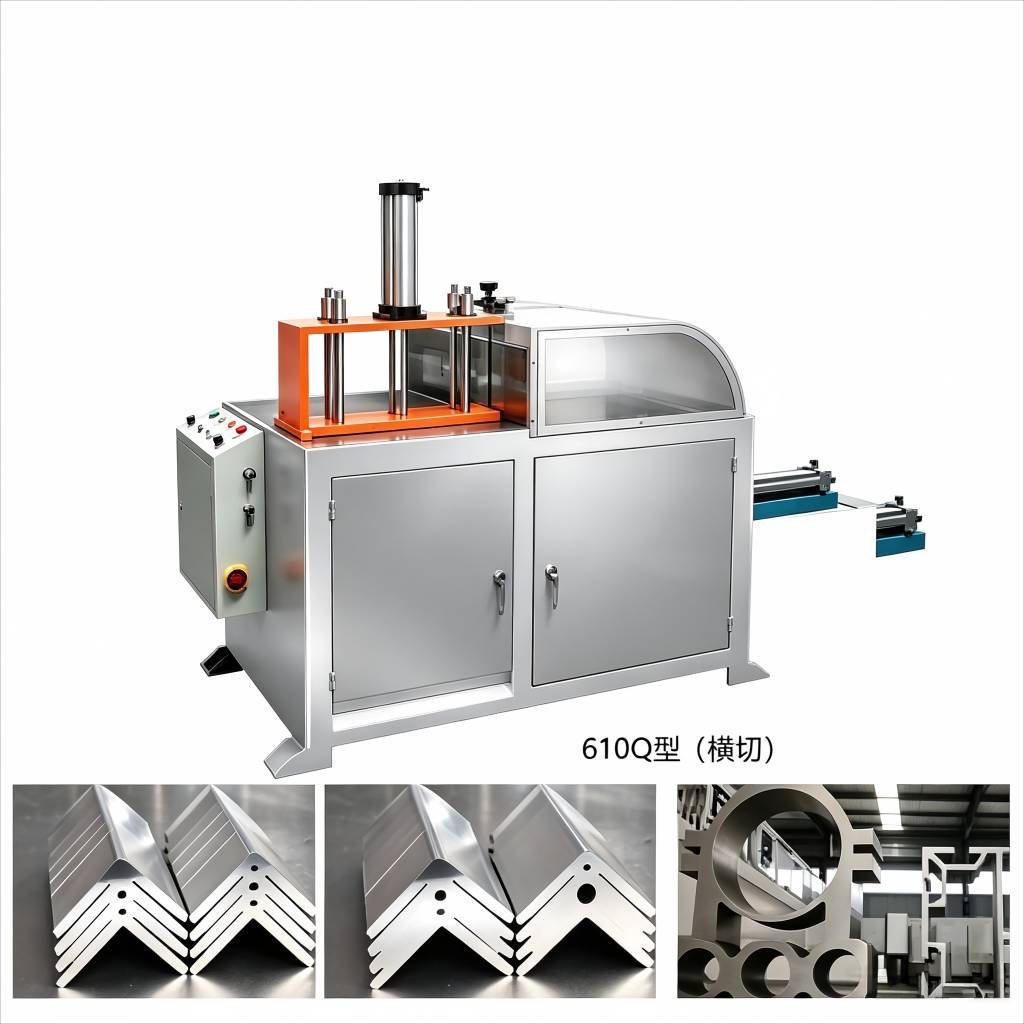

| Model | 610Q (Horizontal Cut) |
| Cutting length | 10–1200mm |
| Main motor power | 4kw |
| Saw blade size | Φ610 × Φ25.4 × 100T |
| Saw feed rate | 0–3m/min |
| Automatic feed speed | 10m/min |
| Sawing (W × H) | 500 × 225mm |
| Speed of main motor | 2850r/min |
| Overall size (L × W × H) | 2100 × 810 × 1250mm |
| Saw blade return speed | 2–3m/min |

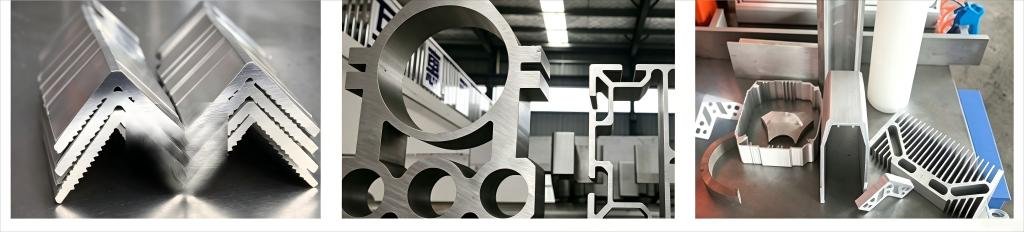

Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
