Product Details
Mechanical characteristics
■ Mainly used cutting for industrial profiles,aluminum alloy doors and windows,heat sink,copper,can also be used for cutting and baiting of plastic profile.
■ Adopting hard alloy saw blade,diameter up to 18 ” with high line speed and high processing precision.
■ The machine tool with CNC feeding system,and according to customer requirements of the installation of supporting rack.
■ Adopting the Japanese MITSUBISHI servo motor,ball screw and imported rails,and repeated cutting with high precision,more suitable for industrial profiles,copper aluminum bar cutting.
Machine parameters
| Item | LQ-455CNC |
|---|---|
| Model | LQ-455CNC |
| Servo motor | 1kw |
| Main motor power | 4kw |
| Saw blade size | Φ455 × Φ25.4 × 120T |
| Saw feed rate | 0~3m/min |
| Working voltage | 380V |
| Automatic feed speed | 10m/min |
| Sawing (W × H) | 300 × 125mm |
| Speed of main motor | 2850r/min |
| Overall size (L × W × H) | 2200 × 900 × 1600mm |
| Saw blade return speed | 2~3m/min |
| Working pressure | 0.6~0.8Mpa |
| Weight of machine tool | 1000kg |

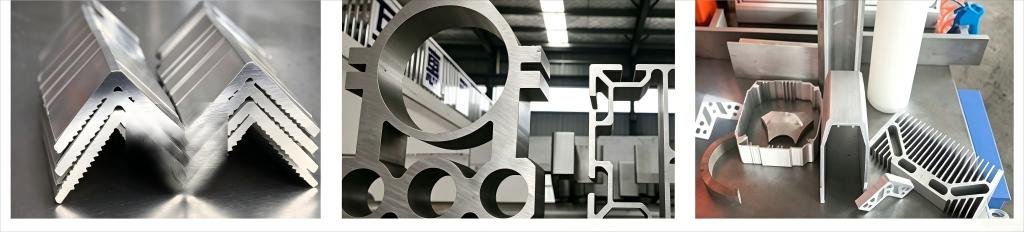

Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
