Product Details
Mechanical characteristics
■ 610Q To improve the traditional structure of the latest design,the use of the saw blade cutting line.
■ Adopting linear guide,higher accuracy.
■ Pneumatic semi-automatic type.
■ Adopting tungsten steel saw blade,cross cutting aluminum profile cutting machine is a specialized saw cutting aluminum and aluminum products metal circular saw machine, sawing after incision is smooth and there is no need to be processed,are widely used in automobile industry,furniture industry and radiator industry.
■ This machine has simple operation, small noise, no pollution, no burr, good aluminum cutting quality, high production efficiency.
■ Automatic oil injection lubrication,cooling,ection without burr,saw more durable.
Machine parameters
| Model | 455Q |
| Aluminum cutting angle | 90° & 45° |
| Maximum cutting width | 300mm |
| Maximum cutting thickness | 125mm |
| Spindle speed | 3500r/min |
| Motor power | 4kw |
| Model | 610Q (Horizontal Cut) |
| Cutting length | 10–1200mm |
| Main motor power | 4kw |
| Saw blade size | Φ610 × Φ25.4 × 100T |
| Saw feed rate | 0–3m/min |
| Automatic feed speed | 10m/min |
| Sawing (W × H) | 500 × 225mm |
| Speed of main motor | 2850r/min |
| Overall size (L × W × H) | 2100 × 810 × 1250mm |
| Saw blade return speed | 2–3m/min |

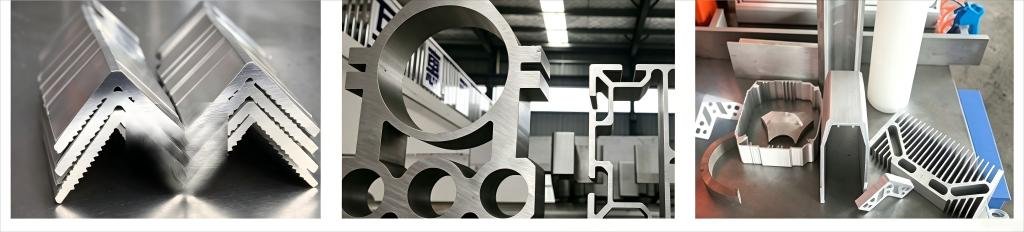

Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
