Mechanical characteristics

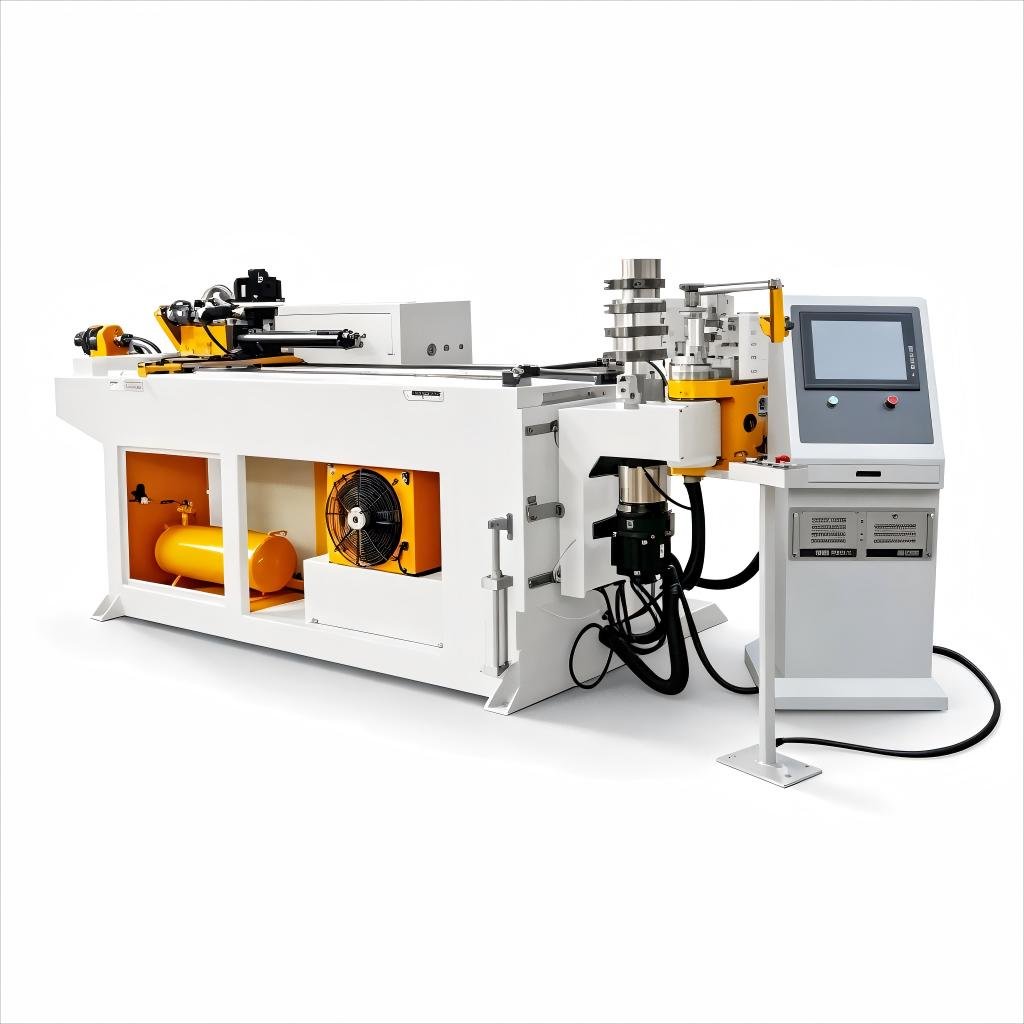

The CNC bending machine can bend complex three – dimensional pipes left and right.
■ The 5-13 axis servo motor controls accurately.
■ The left-turn and right-turn functions of 1-4 layer molds can be realized.
■ Large radius or spiral products can be bent, with push bending function.
■ The computer system for forestry industry has the function of 3D interference inspection.
■ The machine can be connected to a robot and a three-dimensional measuring instrument.
■ The input pipe fittings data can be directly used to generate 3D stereo images, and can simulate the forming process of the pipes, previewing the pipes forming graphics.
■ It has a complete alarm function for machine failure and displays alarm information on the screen, which is convenient for operators to find and troubleshoot.
Machine parameters
| Model | Unit | DW-18CNC | DW-25CNC | DW-38CNC | DW-50CNC | DW-63CNC | DW-75CNC | DW-89CNC | DW-114CNC | DW-130CNC | DW-168CNC | DW-219CNC | DW-273CNC | DW-325CNC |
| Max. bending diameter and wall thickness | mm | Φ18×1.2 | Φ25×1.5 | Φ38×2 | Φ50×3 | Φ63×4 | Φ75×4 | Φ89×6 | Φ114×8 | Φ130×8 | Φ168×14 | Φ219×16 | Φ273×20 | Φ325×30 |
| Max. bending radius | mm | R120 | R160 | R180 | R250 | R250 | R300 | R300 | R450 | R450 | R600 | R800 | R800 | R1200 |
| Max. bending angle | ° | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 |
| Max. feeding length | mm | 1800 | 2000 | 2200 | 2500 | 3000 | 3000 | 3000 | 3000 | 3000 | 3500 | 4000 | 4000 | 5000 |
| Feeding mode | — | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery | Direct delivery or pinch delivery |
| Pipe bending speed | °/s | Max 180 | Max 150 | Max 150 | Max 85 | Max 85 | Max 40 | Max 30 | Max 30 | Max 30 | Max 30 | Max 25 | Max 25 | Max 20 |
| Pipe turning speed | °/s | Max 200 | Max 200 | Max 200 | Max 200 | Max 200 | Max 160 | Max 160 | Max 160 | Max 160 | Max 160 | Max 80 | Max 80 | Max 60 |
| Feeding speed | mm/s | Max 1000 | Max 1000 | Max 1000 | Max 1000 | Max 1000 | Max 800 | Max 800 | Max 800 | Max 800 | Max 800 | Max 600 | Max 500 | Max 500 |
| Pipe bending precision | ° | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.2 | ±0.2 | ±0.2 |
| Pipe turning precision | ° | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Feeding precision | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Data entering mode | 1、Coordinate (X.Y.Z) 2、Work value (Y.B.C) | |||||||||||||
| Pipe bending mode | Servo pipe bending ：1kw | Servo pipe bending：2kw | Servo pipe bending：3kw | 1、Servo Pipe Bending：5kw (More than three axes) 2、Hydraulic Pipe Bending | ||||||||||
| Pipe turning servo motor power | kw | 0.2 | 0.4 | 0.75 | 0.75 | 0.75 | 1 | 1.5 | 2 | 2 | 3 | 3 | 3 | 7 |
| Feeding servo motor power | kw | 0.4 | 0.75 | 1 | 1.5 | 1.5 | 1.5 | 2 | 3 | 3 | 4 | 5 | 7 | 11 |
| Number of pipe bending | 1、16 piece (PLC type) 2、33 piece (Industrial Computer Type) | |||||||||||||
| Storing part number | 1、1000 Group (PLC type) 2、Two million sets (Industrial Computer Type) | |||||||||||||
| Hydraulic motor power | kw | 4 | 4 | 5.5 | 5.5 | 7.5 | 11 | 22 | 22 | 30 | 35 | 35 | 55 | |
| Max. system pressure (adjustable) | Mpa | 10 | 12 | 12 | 12 | 12 | 12 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Machine weight | kg | 1200 | 1300 | 1500 | 2500 | 3000 | 4500 | 5500 | 6800 | 7800 | 12000 | 22000 | 25000 | 38000 |
Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
